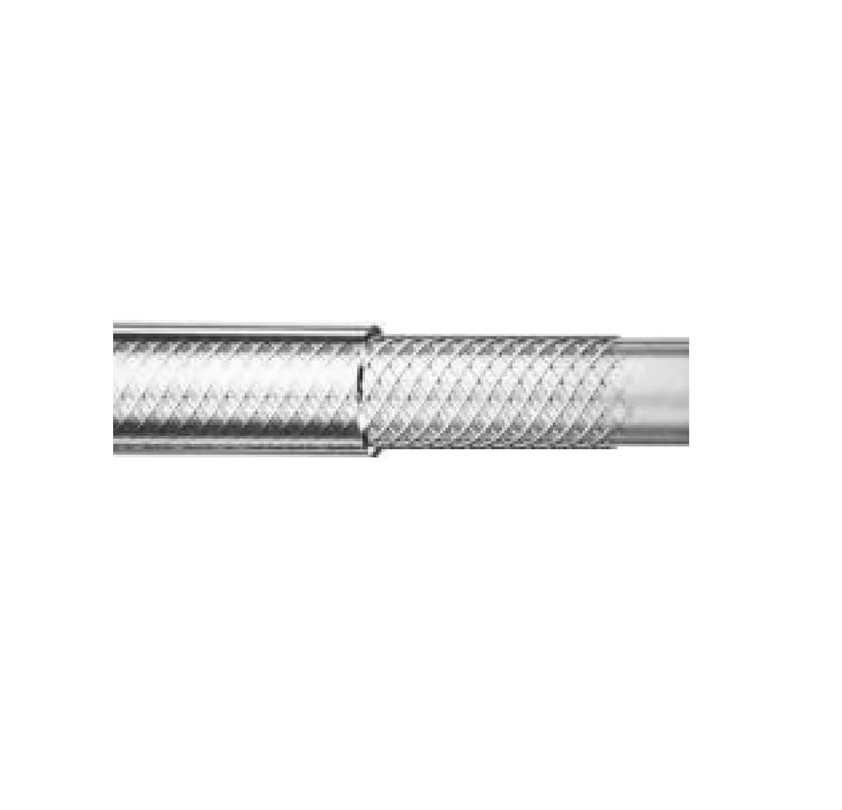

Vinitress is a flexible clear PVC hose for food, beverages and sanitary products. The hose features a smooth tube that does not impart taste or odor and allows full-flow. An excellent food grade hose for all low duty mission profiles where an economical solution is requested.
Markets
• Agriculture
• Industrial
• Processing
Features/Benefits
• Meets requirements and amendments of RoHS and EU resolutions for food contact to preserve consumers' health and foodstuff properties
• Transparent structure to visually monitor the passage of media
• Design Factor 3:1 to enhance safety for operators and equipment
Applications
• Beverages
• Water
| Weight: | 0.10 to 1.53 kg/m, 0.07 to 0.55 lb/ft |
| Industry: | Agriculture, General Industrial |
| Hose Inner Tube Material: | n/a |
| Brand: | Parker |
| Maximum Operating Temperature: | 140 °F, 60 °C |
| Minimum Operating Temperature: | -20 °C, -4 °F |
| Maximum Operating Pressure: | 5 to 20 bar, 72.5 to 300 psi |
| Product Type: | Food Grade Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | PVC |
| Materials of Construction: | Rubber |
| Division: | Polymer Hose Division Europe |
| Product Style: | Delivery |
| Minimum Bend Radius: | 1.575 to 11.811 inch, 40 to 300 mm |
| Media: | Food & Beverage |
| Specifications Met: | CE EU 10/2011 |
| Compatible Fitting: | n/a |
| Inside Diameter: | 0.236 to 2 inch, 6 to 50 mm |
| Length: | 25 to 100 m |
| Application: | Food & Beverage Processing |
| Hose Reinforcement Material: | Textile |
| Operating Features: | Sterilization at 130 °C for Short Periods. |
| Outside Diameter: | 0.472 to 2.520 inch, 12 to 64 mm |
| Products | Hose I.D. (mm) |
|---|---|
| IH35033229/100 | 6 |
| IH35033230/100 | 8 |
| IH35033223/50 | 9 |
| IH35033231/100 | 10 |
| IH35033220/50 | 13 |
| IH35033222/50 | 15 |
| IH35033221/50 | 19 |
| IH35033245/50 | 25 |
| IH35033240/25 | 40 |
| IH35033241/25 | 32 |
| IH35033246/25 | 38 |
| IH35033242/25 | 50 |
