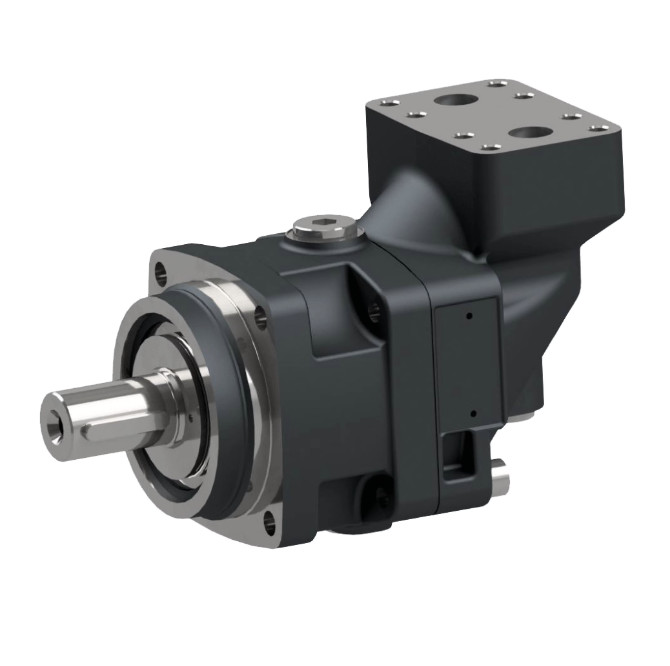

Parkers F10 pump & motor series are available in 7 displacements, from 30 cc up to 125 cc, and designed for both open and closed circuit transmissions. Thanks to the patented spherical piston concept the F10 series offers best efficiency which mean less power losses. The F10 has the same design concept as the heavy duty series F11 and F12 with double tapered bearings and ring gear synchronization for best reliability and durability. The pumps have up to a 13 % smaller envelope size and 25% lower weight than equivalent F12 displacement. providing very easy installation.

F10 comes in both ISO, SAE and Cartridge versions with very flexible shaft options. Parker also offers wide range of speed sensor and integrated valve options.

Markets:

• Industrial

• Energy

• Government (Non Aerospace)

• HVAC

• Mobile

• Natural Resources

• Transportation (Non Aerospace)

Features/Benefits:

• Displacement from 30 to 125 cc – support various applications.

• unbeatable efficiency - Thanks to patented spherical piston concept and ring gear synchronization the overall efficiency is up to 95%

• compact design - The new F10 series are up to 13% smaller envelope size and 25% lower weight compared to F12 series.

• Cost effective - The F10 series are optimized for applications with lower pressure and speed demands.

Applications:

• Agriculture Machinery

• Construction Equipment

• Aerial Lift

• Material Handling Equipment

• Marine Cranes

• Street Sweeper

• On-road Transportation

• Mining
