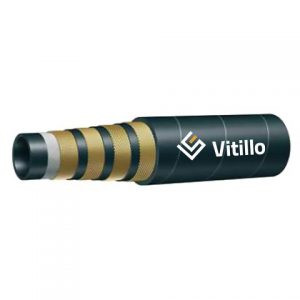

ICEBERG/4SH

Brand : Vitillo

Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Weight	Cover Type
TS4SH10ICE	16	16.0 mm 5/8 “	28.5 mm 1.12 inch	450 bar 6525 psi	1800 bar 26100 psi	240 mm 9.44 inch	1.39 kg/mt 0.93 lb/ft	Standard
TS4SH12ICE	19	19.0 mm 3/4 “	31.2 mm 1.23 inch	420 bar 6090 psi	1680 bar 24360 psi	280 mm 11.02 inch	1.46 kg/mt 0.98 lb/ft	Standard
TS4SH16ICE	25	25.4 mm 1 “	38.3 mm 1.51 inch	385 bar 5580 psi	1540 bar 22320 psi	340 mm 13.39 inch	1.95 kg/mt 1.31 lb/ft	Standard
TS4SH20ICE	31	31.8 mm 1 1/4 “	45.4 mm 1.79 inch	350 bar 5070 psi	1400 bar 20280 psi	460 mm 18.11 inch	2.45 kg/mt 1.65 lb/ft	Standard
TS4SH24ICE	38	38.1 mm 1 1/2 “	53.0 mm 2.08 inch	300 bar 4350 psi	1200 bar 17400 psi	560 mm 22.05 inch	3.00 kg/mt 2.02 lb/ft	Standard
TS4SH32ICE	51	50.8 mm 2 “	67.6 mm 2.66 inch	250 bar 3620 psi	1000 bar 14480 psi	700 mm 27.56 inch	4.31 kg/mt 2.90 lb/ft	Standard

SAŅEMT PIEDĀVĀJUMU Vitillo Iceberg 4sh
