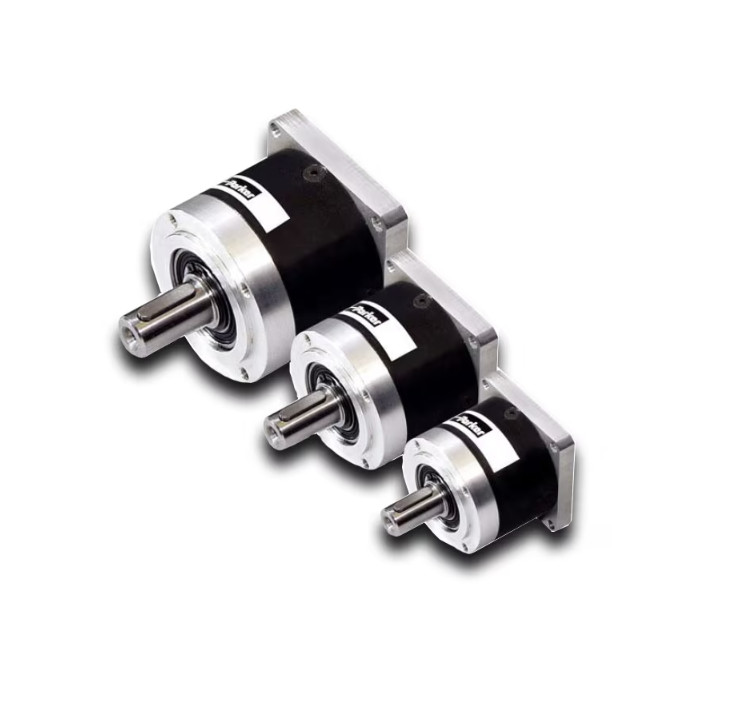

Prieinamas 60-80 mm rėmų dydžiuose, PTN serijos ekonomiškas planetarinis reduktorius buvo sukurtas LCB tiesinių pavaros taikymams, kur mažas lošimas nereikalingas.
| Performance: | Standard Precision |
| Konfigūracija: | Inline |
| Gear Geometry: | Planetary |
| Frame Size: | 60 mm, 80 mm |
| Backlash: | < 12 to < 25 arc-min, - |
| Rated Torque: | 15 to 110 Nm, 133 to 974 lb-inch |
| Radial Load Capacity: | 500 to 950 N, 112 to 214 lb |
| Ratio: | 4, 8, 25:1 |
| Maximum Input Speed: | 4000 RPM |
| Ingress Protection Rating: | IP54 |
| Efficiency Rating: | 94 to 96 % |
| Products | Frame Size | Ratio | Mounting Option |
|---|---|---|---|
| PTN060-004S7 / M003-321-000 | 60mm | Gearbox Ratio = 4:1 | M040/063/09/20 |
| PTN060-004S7 / M051-000-000 | 60mm | Gearbox Ratio = 4:1 | M060/075/11/23 |
| PTN060-004S7 / M060-140-000 | 60mm | Gearbox Ratio = 4:1 | SY56 (NEMA23) |
| PTN060-008S7 / M003-321-000 | 60mm | Gearbox Ratio = 8:1 | M040/063/09/20 |
| PTN060-008S7 / M051-000-000 | 60mm | Gearbox Ratio = 8:1 | M060/075/11/23 |
| PTN060-008S7 / M060-140-000 | 60mm | Gearbox Ratio = 8:1 | SY56 (NEMA23) |
| PTN060-025S7 / M003-321-000 | 60mm | Gearbox Ratio = 25:1 | M040/063/09/20 |
| PTN060-025S7 / M051-000-000 | 60mm | Gearbox Ratio = 25:1 | M060/075/11/23 |
| PTN060-025S7 / M060-140-000 | 60mm | Gearbox Ratio = 25:1 | SY56 (NEMA23) |
| PTN080-004S7 / M049-284-000 | 80mm | Gearbox Ratio = 4:1 | M060/075/11/23 |
| PTN080-004S7 / M004-128-000 | 80mm | Gearbox Ratio = 4:1 | M080/100/14/30 |
| PTN080-004S7 / M030-000-000 | 80mm | Gearbox Ratio = 4:1 | M080/100/19/40 |
| PTN080-004S7 / M034-376-000 | 80mm | Gearbox Ratio = 4:1 | SY87 (NEMA34) |
| PTN080-004S7 / M125-363-000 | 80mm | Gearbox Ratio = 4:1 | SY107 (NEMA42) |
| PTN080-008S7 / M049-284-000 | 80mm | Gearbox Ratio = 8:1 | M060/075/11/23 |
| PTN080-008S7 / M004-128-000 | 80mm | Gearbox Ratio = 8:1 | M080/100/14/30 |
| PTN080-008S7 / M030-000-000 | 80mm | Gearbox Ratio = 8:1 | M080/100/19/40 |
| PTN080-008S7 / M034-376-000 | 80mm | Gearbox Ratio = 8:1 | SY87 (NEMA34) |
| PTN080-008S7 / M125-363-000 | 80mm | Gearbox Ratio = 8:1 | SY107 (NEMA42) |
| PTN080-025S7 / M049-284-000 | 80mm | Gearbox Ratio = 25:1 | M060/075/11/23 |
| PTN080-025S7 / M004-128-000 | 80mm | Gearbox Ratio = 25:1 | M080/100/14/30 |
| PTN080-025S7 / M030-000-000 | 80mm | Gearbox Ratio = 25:1 | M080/100/19/40 |
| PTN080-025S7 / M034-376-000 | 80mm | Gearbox Ratio = 25:1 | SY87 (NEMA34) |
| PTN080-025S7 / M125-363-000 | 80mm | Gearbox Ratio = 25:1 | SY107 (NEMA42) |
