Parker's Push-Lok hose line offers the broadest fluid compatibility, application, and size range in the industry. The Push-Lok system is easy to use; no clamps or special tools are required during installation.

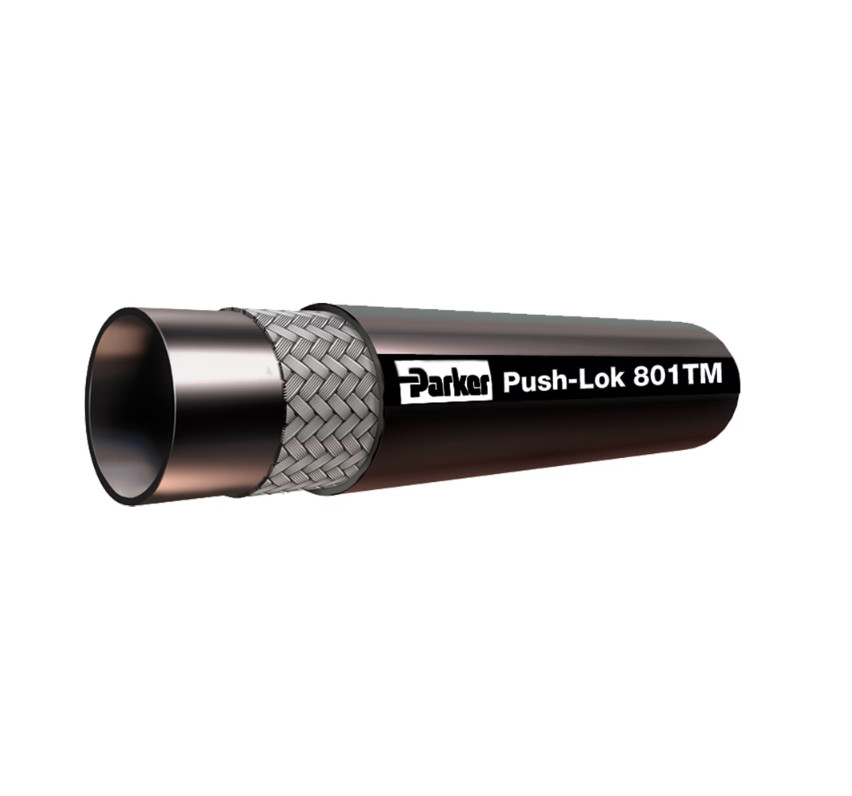

Hose 801TM with special fire-retardant cover provides quick and easy assembly/disassembly. It is ideal for thermal management applications like data center liquid cooling or battery liquid cooling and is compatible with Push-Lok fittings in series 82 in steel, stainless steel and brass in connections such as DIN, BSP, SAE, JIC and ORFS.
Markets:
• Thermal management applications
• Data center cooling system
Features/Benefits:
• Easy assembly, made in seconds saving valuable time and cost
• The unique seal of Push-Lok ensures reliable, durable, leak-free service
• High functional safety with a design factor of 4
• A wide range of hose and fittings for a wide range of applications
• Fire retardancy according to UL requirements
• UL Approval Class YDQS2 with VW-1 flame test and UL94 V0 for cover compound.
Applications:
• All markets with low-pressure thermal management applications
| Weight: | 0.13 to 0.55 kg/m, 0.09 to 0.37 lb/ft |
| Industry: | Thermal Management |
| Inside Diameter: | 1/4 to 1 inch, 6.4 to 25.4 mm |
| Cover Color: | Black |
| Hose Inner Tube Material: | Synthetic rubber |
| Brand: | Parker |
| Maximum Operating Temperature: | 212 °F (Water 185°F / Air 158°F), 100 °C (Water 85°C / Air 70°C) |
| Media: | Air (General Industrial Air), Coolants (Water-Glycol), Petroleum Hydraulic Fluids |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Maximum Operating Pressure: | 1.4 to 2.4 MPa, 14 to 24 bar, 200 to 350 psi |
| Compatible Fitting: | 82 Series |
| Application: | Thermal Management |
| Product Type: | Push-Lok and Push-on Hoses |
| Technology: | Fluid & Gas Handling |
| Materials of Construction: | Rubber |
| Design Factor: | 4:1 |
| Hose Reinforcement Material: | High-tensile fibre braid |
| Vacuum Pressure Rating: | 0.51 to 0.95 bar, 15.06 to 28.05 inch-Hg, 382.53 to 712.56 mm-Hg |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 2.559 to 9.843 inch, 65 to 250 mm |
| Outside Diameter: | 0.508 to 1.299 inch, 12.9 to 33.0 mm |
| Specifications Met: | Parker Specifications |
| Products | Hose Inside Diameter | Maximum Operating Pressure |
|---|---|---|
| 801TM-10-RL | 15.9 mm - 5/8 inch | 21 bar |
| 801TM-12-RL | 19.1 mm - 3/4 inch | 21 bar |
| 801TM-16-RL | 25.4 mm - 1 inch | 14 bar |
| 801TM-4-RL | 6.4 mm - 1/4 inch | 24 bar |
| 801TM-6-RL | 9.5 mm - 3/8 inch | 24 bar |
| 801TM-8-RL | 12.7 mm - 1/2 inch | 21 bar |
