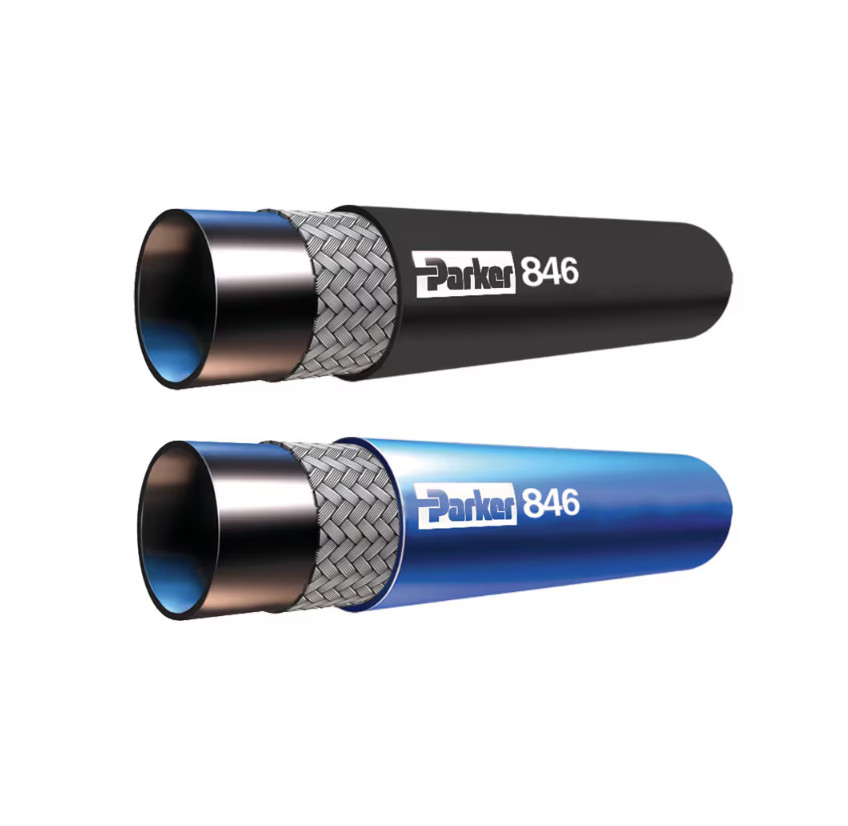

Parker's Low Pressure Push-Lok® hose 846 with a synthetic PKR rubber tube has been designed for high oil temperatures and for high temperature applications up to +150 °C. Push-Lok hose 846 has a blue or black MSHA approved synthetic PKR rubber cover and has a very low fitting insertion force. The Parker Low Pressure Push-Lok hose range is complemented by a full selection of compatible Push-Lok fittings in steel, stainless steel and brass with connections in DIN, BSP, SAE, JIC and ORFS.
Low Pressure Push-Lok® - the self-grip hose system for low-pressure applications features the widest fluid compatibility, application and size range in the industry. The Push-Lok system is easy to use. No clamps or special tools are required during installation.
Markets:
• Industrial
Features/Benefits:
• Push-Lok assemblies can be made in seconds, saving valuable time and cost
• 846 has a very low fitting insertion force.
• The unique seal of Push-Lok ensures reliable, durable, leak-free service
• High functional safety with a design factor of 4
Wide range of hose and fittings for a wide range of applications
• Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety, combined with the longest service life of the final product to the end-users.
• The hose cover is made of MSHA approved black or blue synthetic PKR rubber.
• The Parker Low Pressure Push-Lok hose range is complemented by a full selection of compatible Push-Lok fittings in steel, stainless steel and brass.
Applications:
• 846 is ideal for all markets with special high temperature applications.
The Parker Low Pressure Push-Lok®self-grip hose system is compatible with Push-Lok® fittings series 82.
| Weight: | 0.13 to 0.36 kg/m, 0.09 to 0.24 lb/ft |
| Industry: | General Industrial |
| Hose Inner Tube Material: | PKR® Rubber |
| Brand: | Parker |
| Minimum Operating Temperature: | -48 °C, -54.4 °F |
| Maximum Operating Pressure: | 1.6 MPa, 16 bar, 230 psi |
| Application: | High Temperature Applications |
| Product Type: | Push-Lok and Push-on Hoses |
| Technology: | Fluid & Gas Handling |
| Materials of Construction: | Rubber |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 2.559 to 7.087 inch, 65 to 180 mm |
| Cover Material: | PKR® Rubber MSHA approved |
| Cover Color: | Black, Blue |
| Compatible Fitting: | 82 Series |
| Inside Diameter: | 1/4 to 3/4 inch, 6.4 to 19.1 mm |
| Maximum Operating Temperature: | 150 °C (Water 85°C / Air 100°C), 302 °F (Water 185°F / Air 212°F) |
| Hose Reinforcement Material: | Braid of High Tensile Fiber |
| Vacuum Pressure Rating: | 0.51 to 0.95 bar, 15.06 to 28.05 inch-Hg, 382.53 to 712.55 mm-Hg |
| Outside Diameter: | 0.496 to 1.031 inch, 12.6 to 26.2 mm |
| Media: | Air (General Industrial Air), Coolants (Anti-Freeze), Petroleum Hydraulic Fluids |
| Products | Hose I.D. (size) | Cover Color | Hose Inside Diameter | Maximum Operating Pressure |
|---|---|---|---|---|
| 846-4-BLK-RL | -4 | Black | 6.4 mm - 1/4 inch | 160 bar |
| 846-4-BLU-RL | -4 | Blue | 6.4 mm - 1/4 inch | 160 bar |
| 846-6-BLK-RL | -6 | Black | 9.5 mm - 3/8 inch | 160 bar |
| 846-6-BLU-RL | -6 | Blue | 9.5 mm - 3/8 inch | 160 bar |
| 846-8-BLK-RL | -8 | Black | 12.7 mm - 1/2 inch | 160 bar |
| 846-8-BLU-RL | -8 | Blue | 12.7 mm - 1/2 inch | 160 bar |
| 846-10-BLK-RL | -10 | Black | 15.9 mm - 5/8 inch | 160 bar |
| 846-10-BLU-RL | -10 | Blue | 15.9 mm - 5/8 inch | 160 bar |
| 846-12-BLK-RL | -12 | Black | 19.1 mm - 3/4 inch | 160 bar |
| 846-12-BLU-RL | -12 | Blue | 19.1 mm - 3/4 inch | 160 bar |
